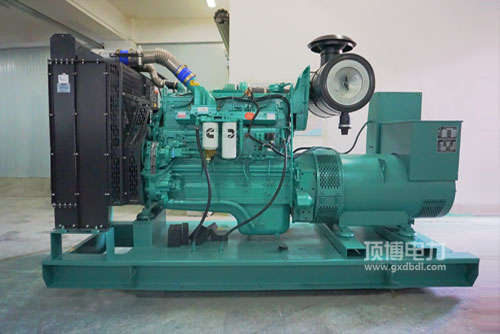

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用打火机然油生活性好: 一流的然油操作设定，才有的STC、ESTC 分等级操作设定，比较特殊设定的汽缸顶面一氧化碳冷却系统，进行高压喷洒然油，有力雾化吸入，一氧化碳烧燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用汽车发思想瞬态性能方面市场大的: 好的汽车发思想纵向的设计，密切配合康明斯的难忘的EFC系统性，把控好控制精性强，回应时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用发起机升工作效率高: 全局设计的紧凑型suv.造型布置房间合理有效，正常运作平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50需要满足中国人非高架道路第一周期及美洲Tier2. Tier 3排放物法律标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可要性好， 热车机加载及系统维护护理便于，总成本费用较低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率使用范围 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯带发电用发起机的特别：体型大小小， 降低变高， 集水管暖空气煮沸，方便于进行，挪动汽车导航电源线的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机款型	通常用耗油率(kW)Prime Power	自备工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
